The Leg Press and Calf Extension machine comes equipped with a footplate and adjustable backpad angle which provides ideal positioning for both leg and calf pressing.

The four-bar linkage in the footplate allows users to maintain ergonomic ankle alignment throughout each movement, as well as an angled lower section to help with calf press positioning. An integrated rep counter keeps users motivated set after set, while built-in storage on the top cap keeps accessories close by.

Reap maximum gains with this Leg Press and Calf Extension machine. The adjustable backpad and four-bar linkage ensure proper alignment for smooth, effective movements. And let\’s not forget about the integrated rep counter and built-in storage – talk about convenience and motivation!

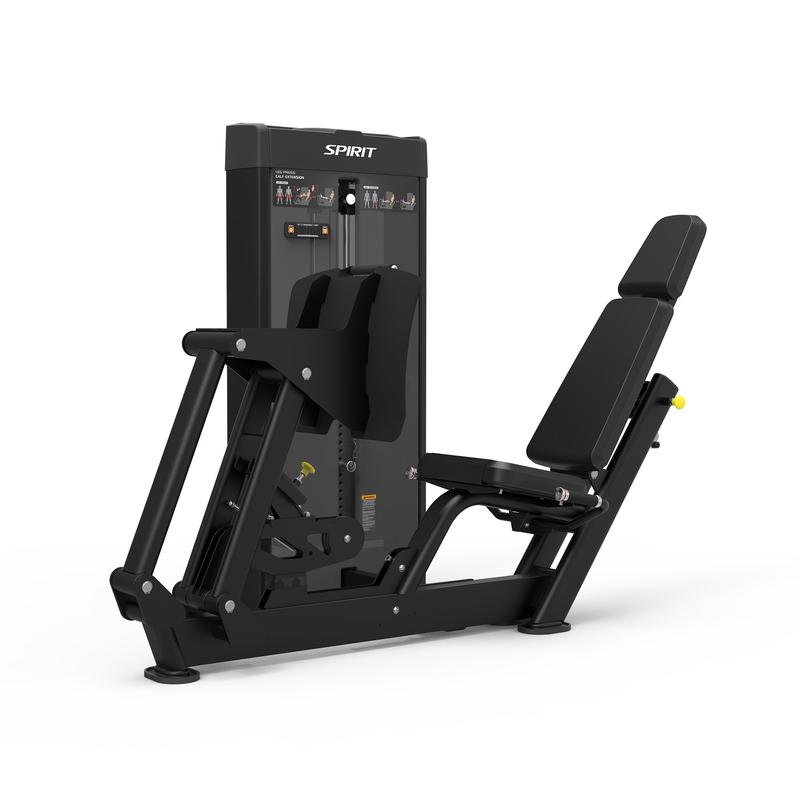

CSD-LPCE LEG PRESS / CALF EXTENSION
Premium beveled pads with sport stitching
5lb increment weight for more variety
Premium LOOS brand USA cables
Low profile, modern design
Large storage tray at top of tower
200lb weight stack

CSD-LPCE LEG PRESS / CALF EXTENSION

The Leg Press and Calf Extension machine comes equipped with a footplate and adjustable
backpad angle which provides ideal positioning for both leg and calf pressing. The four-bar
linkage in the footplate allows users to maintain ergonomic ankle alignment throughout
each movement, as well as an angled lower section to help with calf press positioning. An
integrated rep counter keeps users motivated set after set, while built-in storage on the top
cap keeps accessories close by.
DUALS

800-258-4555 [email protected] WWW.SPIRITFITNESS.COM REV: 01.25.2024

SPECIFICATIONS

Performance

200lb Weight Stack
5 lb Increment Weight
10 lb Top Plate
14 x 15 lb Plates
Pulley Ratio 1.2 x Weight
LOOS USA Cables
Premium Beveled Edge Pads
Sport Stitching

Convenience

Rep/Time Counter (2 C Batteries required, not included)
Start/Finish Workout Diagrams
Storage Trays (Top of Weight Tower)
Easy-Adjust Seat Angle

Frame

Heavy Gauge Steel Frame
Low Profile Design
High-Quality Electrostatic Powder Coat Finish
Fully Enclosed Weight Stack
Steel Feet w/Rubber Foot Covers
Max User Weight Capacity: 360 lbs

Dimensions and Weight

Setup Dimensions: 76.37\” x 44.7\” x 62.2\”
Shipping Dimensions & Shipping Weight:
Carton A: 54 x 24 x 5 – 19.8 lb
Carton B: 60 x 23 x 10 – 92.6 lb
Carton C: 74 x 33 x 20 – 302 lb
Carton D: 47 x 4 x 16\” – 22 lb
Carton E: 21\” x 20\” x 11\” – 234.7 lb

US Commercial Warranty

10 Years Frame
5 Years Bushings, Bearings, Shocks, Pulleys, Guide Rods
1 Year Paint and Finishes, Cables, Grips, Counter/Timer, Pull-Pin
Components, Rail Wheels, Attachments, All Other Parts Not Mentioned
6 Months Upholstery
1 Year Labor
*Prisons and correctional facilities are excluded from warranty coverage.

Owner\’s Manual
